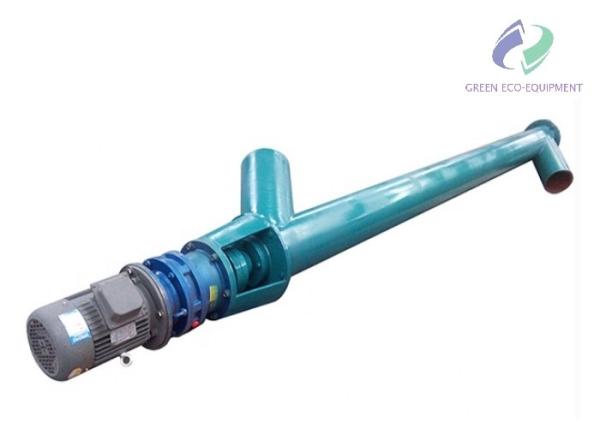

High-Efficiency Sand Screw Conveyor For Conveying Powder Material
Product Description
High-Efficiency Sand Screw Conveyor is widely used in many industries, such as building materials, chemical, coal, grain and oil, fodder, mining industries. It is suitable for horizontal or inclined conveyor powdery, granulous and small block material, such as grain, dinas, coal, flour, cement, chemical fertilizer and so on. It cant convey material which is easy to metamorphic, sticky, agglomeration; Using temperature of environment is -20~50℃,conveying material temperature is ≤200℃.
Industrial pipe screw conveyor is suitable for continuous conveying of loose materials such as powder, granular and small piece material , which includes clay powder, coal powder, cement, sand, grain, small piece of coal , pebbles, and cast iron filings, etc.
Main Parameters
| Model | Item |
| Screw diameter (mm) | Conveying distance(mm) | Screw speed (r/min) | largest feed ability (m³/h) | Motor power (kw) | Supporting reducer | Material max size (mm) | Reference weight (t) |
| SID1215 | 120 | 1500 | 20-80 | 1.4 | 1.1 | ZQ250 | 20 | 0.65 |
| SID1225 | 2500 | 0.87 |
| SID1615 | 160 | 1500 | 15-75 | 4.8 | 1.5 | ZQ250 | 25 | 0.78 |
| SID1625 | 2500 | 1.03 |
| SID2015 | 200 | 1500 | 15-60 | 7.4 | 2.2 | ZQ250 | 30 | 0.92 |
| SID2025 | 2500 | 1.23 |
| SID3015 | 300 | 1500 | 10-45 | 21.2 | 3 | ZQ250 | 40 | 1.10 |
| SID3025 | 2500 | 1.38 |
Advantages
1. Compact structure, small cross section, light weight.
2. Excellent seal performance and transport efficiency.
3. Flexible technological arrangement, easy to be installed, dismantled and moved, and safe operation.
4. Cost-effective when compared to other conveying devices such as belt, pneumatic or aeromechanical.
5. Efficiently distributes bulk materials to various locations using multiple inlet and discharge points.
6. Totally enclosed for dusty, corrosive or hazardous environments.
Applicaiton
The screw conveyor is widely used for conveying powder, granule, and small block materials, such as: cement, sand, grain, gravel, chemical, fertilizer, coal, etc.
Details Show
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
Field Usage
